   05-06-2010, 3:01 PM
ordinaryguy is not online. Last active: 6/21/2010 12:05:24 AM ordinaryguy



Top 500 Posts
Joined on 08-08-2009
Austin, TX
Posts 34
Re: oil weight
Reply Quote

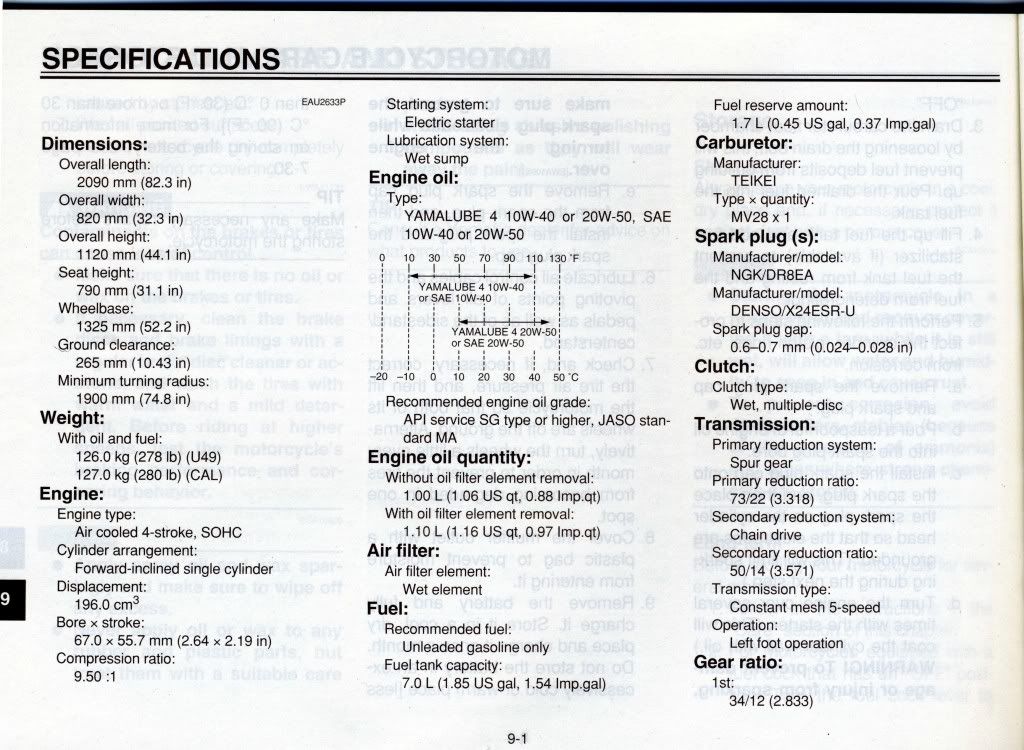

I checked my manual for my 2009 TW and it shows 20-50 for summer temps.
09 TW200
93 XR250L (sold)
78 XL100/CB125/Elsinore Frankenbike (sold)
Homemade Minibike w/WestBend 100cc two-stroke (destroyed by "friend")
   Report
   05-06-2010, 3:17 PM
Warren is not online. Last active: 7/15/2010 6:22:09 PM Warren



Top 75 Posts
Joined on 01-05-2010
Alpine, CA
Posts 309
Re: oil weight

Attachment: TW.JPG
Reply Quote
What page?

This is 2008 manual - My 2007 is the same...



-- Warren in San Diego
-- Back to sailing for awhile
   Report
   05-06-2010, 8:06 PM
QWERTY is not online. Last active: 1/27/2010 11:44:02 AM QWERTY

Top 10 Posts
Joined on 11-22-2006
Posts 2,360
Re: oil weight
Reply Quote
Looks like 10Wxx is good for 10*F (-12*C) and warmer, and 20Wxx is good for 40*F (-5*C) and warmer. As long is the oil is thin enough to flow when cold it will be thin enough to flow when hot. Maybe too thin when hot. I expect engines that crap out with 20W50 don't flow any better when cold than 20W40, and it's the 20W that is the problem, not the 40 or 50.
   Report
   05-07-2010, 5:55 AM
johnnyro is not online. Last active: 7/15/2010 10:06:14 AM johnnyro

Top 500 Posts
Joined on 04-30-2010
White Mountains NH
Posts 54
Re: oil weight
Reply Quote
I have seen 20wt that would not pour out of bottle. In winter cold. It was like cold honey. Slow sticky goo. The motor will still start but you get plenty wear until it warms up.

Single grade oil is a single viscosity oil. It is gummy when too cold and thin when too hot. Its the right thickness at one temp. That temp can be low or high or middle.

The lower number of a multiweight oil is the singleweight equivalent cold, and the higher number is singleweight equivalent hot.

0-40 is very thin cold, so it pumps easy on startup, but resists excessive thinning at high temps like a straight 40 wt.

Synthetics are superior from this angle, to start with. They are naturally multiweight, i.e. if the world had started off with syn oil, the temperature range indicators would not have been based on single weight numbers.

They don't boil off and turn to ash and sludge like dino oil., a the upper end of dino oil range.
   Report
   05-10-2010, 6:04 PM
TW-87 is not online. Last active: 6/29/2010 4:51:24 AM TW-87



Top 75 Posts
Joined on 02-01-2010
Manitoba, Canada
Posts 305
Smile [:)] Re: oil weight
Reply Quote
Johnnyro and Qwerty
Thanks guys. That's my understanding as well.

Warren
I thought some more about your thesis that 20W50 might be too thick when hot, and I don't think that's possible. If you look at the viscosity numbers in the articles that i referenced, all the oils we discussed, including 20W40 and 20W50 (synthetic and conventional) are extremely thin at and above 100C, compared to their low temperature numbers. If the additional viscosity of 20W50 in any way limited it's flow to the cam area, then the oil flow to this area would be very seriously compromised during warmup.

The problem with 20W50 oil, is when the engine is cold, and is the same problem with using 20W40 when cold. The dealer was probably either:

1) refering to the use of 20WXX oil, at lower ambient temperatures, when 10WXX is specified, or
2) He was simply using your use of 20W50 as an excuse for the cam failure.

TW-87
1987 TW200, 15/44 sprockets, DID O-ring chain, Award winning, "Quick Release" Action Packer :-))

   Report
   05-10-2010, 7:19 PM
rm_hm is not online. Last active: 7/15/2010 1:30:46 AM rm_hm



Top 150 Posts
Joined on 09-19-2009
South Puget Sound
Posts 131
Re: oil weight
Reply Quote
I just checked my 09's manual and it does indeed have  20-50 on it. Good eyes ordinaryguy  :)






Jimbo Shield, Directhits,Cyclerack/LED BrkLight, 14-47 Sprkt,130 Jet, 5x.01 Washers, jumbo pegs, Action Packer, 3 Tool Tubes, Seat Pad, Fiamm Horn, 1" Bar Riser, E3 Plug & Ricochet Guard. 72mph on flat

   Report
   05-11-2010, 8:48 AM
Warren is not online. Last active: 7/15/2010 6:22:09 PM Warren



Top 75 Posts
Joined on 01-05-2010
Alpine, CA
Posts 309
Re: oil weight
Reply Quote
Well that is definitely some encouraging news there! Smile [:)]

Out of curiosity I'm going to take some time and see if any key part numbers changed from 2007ish to 2010.


-- Warren in San Diego
-- Back to sailing for awhile
   Report
   05-11-2010, 11:21 AM
Warren is not online. Last active: 7/15/2010 6:22:09 PM Warren



Top 75 Posts
Joined on 01-05-2010
Alpine, CA
Posts 309
Re: oil weight
Reply Quote
 Warren wrote:
Well that is definitely some encouraging news there! Smile [:)]

Out of curiosity I'm going to take some time and see if any key part numbers changed from 2007ish to 2010.


Okay, I spent the last few hours comparing 2007 and 2010 part numbers (as well as building myself a complete Parts Fiche document) and all looks good.

20w50 will be fine an all TW's - So I now stand corrected!
Embarrassed [:$]

-- Warren in San Diego
-- Back to sailing for awhile
   Report
   05-12-2010, 11:42 AM
QWERTY is not online. Last active: 1/27/2010 11:44:02 AM QWERTY

Top 10 Posts
Joined on 11-22-2006
Posts 2,360
Re: oil weight
Reply Quote
20V-50 should not be used at temps under 50*F. The oil will be too thick at cold starts.
   Report
   05-12-2010, 4:16 PM
Ronnydog is online. Last active: 7/15/2010 11:50:53 PM Ronnydog



Top 50 Posts
Joined on 04-29-2008
Poway Ca.
Posts 458
Re: oil weight

Attachment: 701231_gallery_393549.jpg
Reply Quote
I use Kawasaki Synthetic 10W-50 at $7.70 a quart

9"Tire,Powder Coat\Frame,3"Extended SwingArm,TTR230 Piston,Sleve,Crank,15-70 Sprocket,Custom Rack,Brush,Gooved Siped Tires,Black-Out Switches,6006 Front Tire,Heated Grips,Ricochet Plate,Signal Mod,Kickstand Plate,Deer hauler, Oil cooler/spal fan, silencer
   Report
